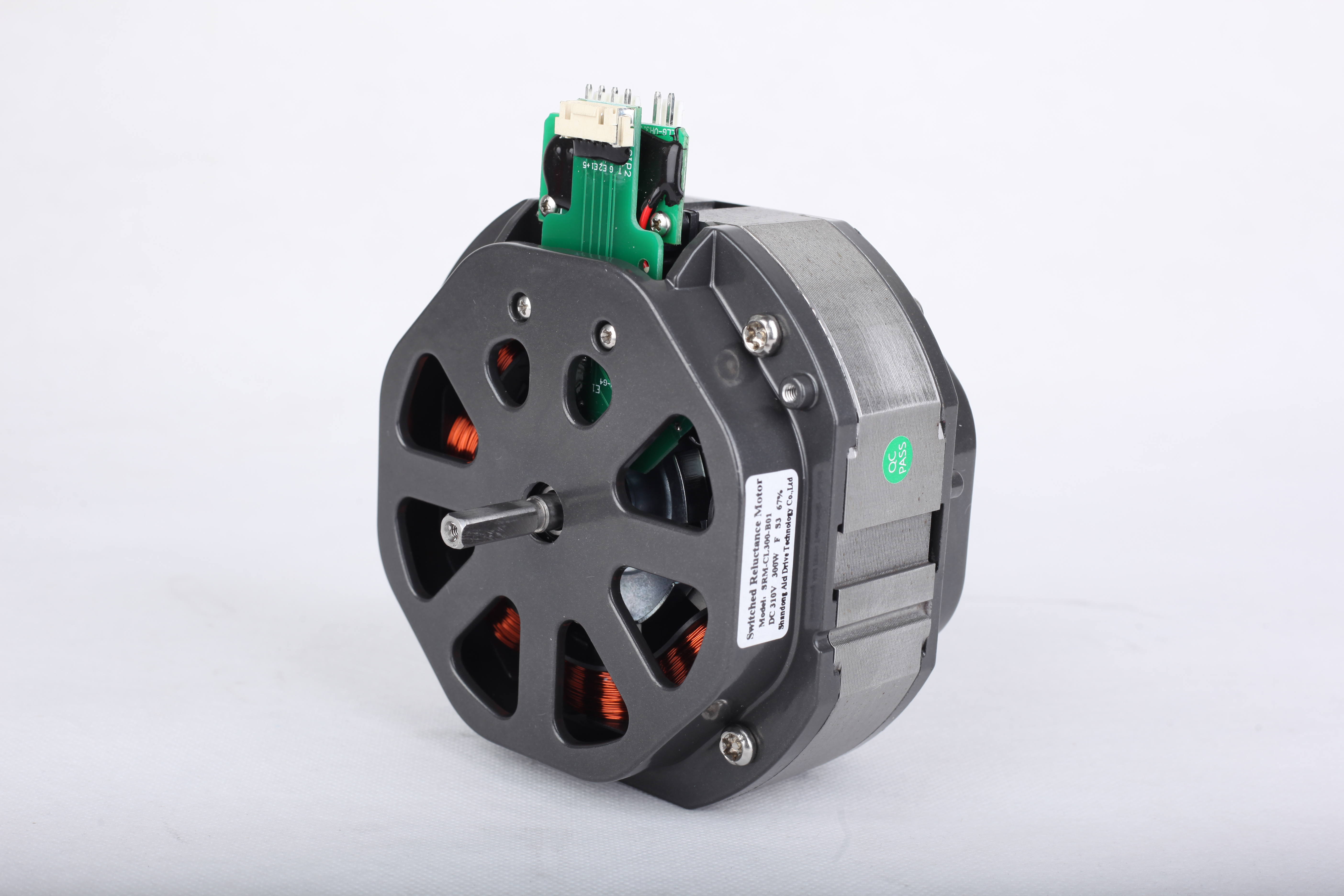

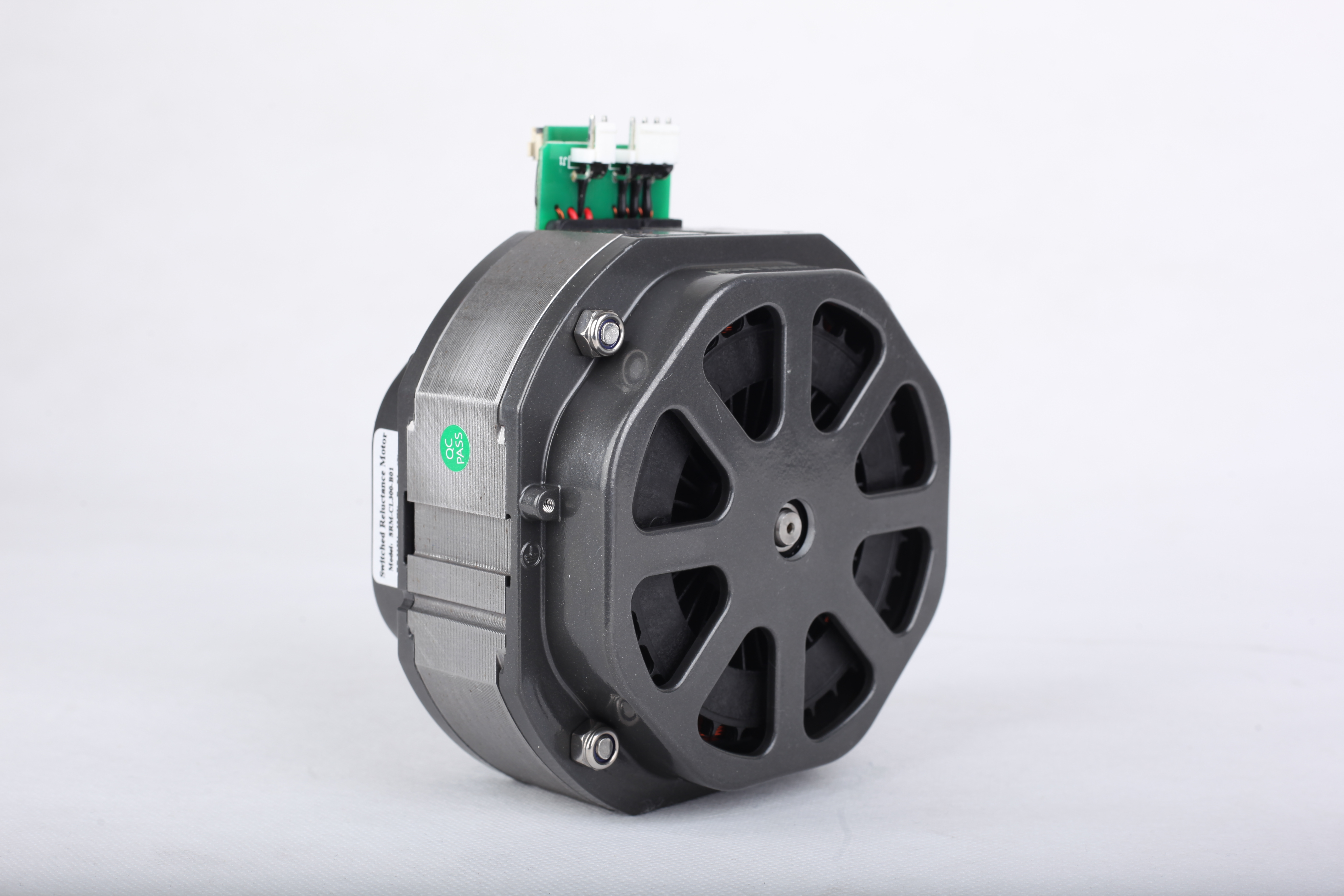

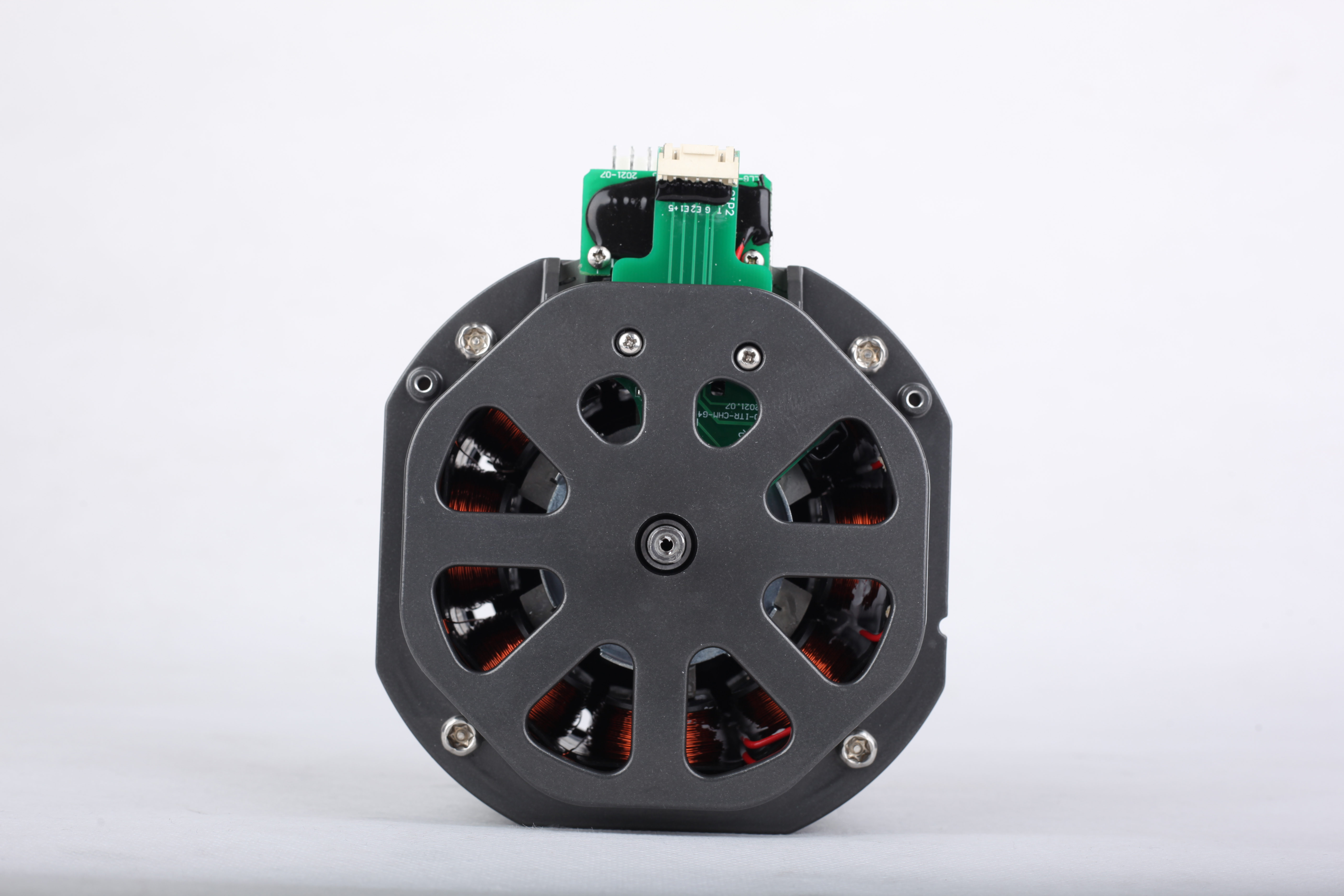

SRM 40-10000 rpm bakeng sa mochini oa ho pheha oa lisebelisoa tsa kichineng
SRM bakeng sa lisebelisoa tsa kichineng
Enjene ea k'hamphani ea rona e fetotsoeng (bakeng sa mochini oa ho pheha) kaofela e ntlafalitsoeng

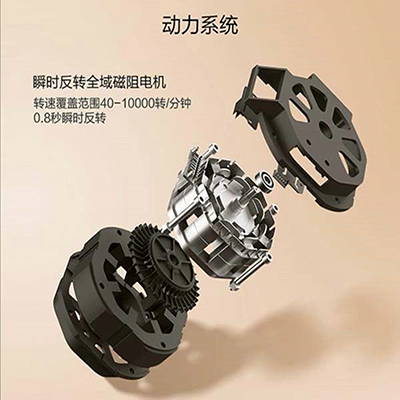

Reverse instant all range switched relucance motor
- Lebelo la sekoaelo sa lebelo: 40-10000 rpm
-0.8 metsotsoana e kgutlela morao hanghang
-35rpm-15000rpm
-Mokhahlelo o phahameng oa ho khanna ka kotloloho
-E khutsitse
Enjene ea ho tsilatsila e phahameng ka ho fetesisa bakeng sa mechini ea ho pheha e nang le mesebetsi e mengata e nang le matla a tlhahiso ea li-sete tse 15,000 ka khoeli.
Selaoli sa enjene se nepahetseng haholo se fetotsoeng bakeng sa processor ea lijo tse nang le mesebetsi e mengata

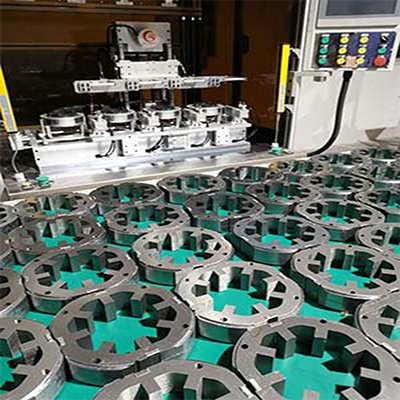

Tlhahiso e kholo le ho romela thepa ka ntle ho li-motors tsa switched reluctance motors bakeng sa mechini e sebetsang e mengata ea lijo
Xinda ke e 'ngoe ea lik'hamphani tsa pele tsa China tse fanang ka lihlahisoa tse tšoanelehang tsa SRD tse nang le litokelo tse ikemetseng tsa thepa ea mahlale ka lihlopha bakeng sa sebaka sa lisebelisoa tsa lapeng.
Ho lemoha ha taolo E sebelisoa mochining oa lijo o sebetsang ka bongata
Lihlahisoa tsa k'hamphani ea rona li sebelisoa mochining oa ho pheha oa "Mibo" oa Ningbo Fangtai Kitchenware Company (mofani)

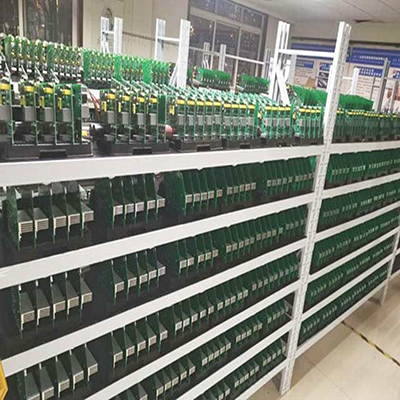

Selaoli sa motlakase oa makoloi se kentsoe mabokoseng le ho romelloa (hajoale li sete tse 5,000 ka khoeli, 'me se ntse se hola ho fihla ho li-sete tse 50,000)
| Litekanyetso tsa motheo | Litekanyetso tsa motheo | Boleng ba palo |
| lebelo le tlase | Lebelo la Min | 35 rpm |
| lebelo le phahameng | Lebelo le phahameng | 10500rpm |
| Sebaka sa torque | Sebaka sa torque | 2.5-3.0nm(min rpm)- 0.2nm(max rpm) |
| Matla a Phahameng | Matla a maholo | 550W |
| lerata le phahameng | Lerata ka lebelo le phahameng | ≤78db |
| Tsamaiso ea makoloi | Tataiso ea ho potoloha | Hanghang pele le ho kgutlela morao ka nako e kgutshwane haholo. |
| Sehlopha sa tšireletso ea insulation | Sehlopha sa tšireletso ea insulation ea Motor | H |
| Mocheso o sebetsang oa tikoloho | Mocheso o sireletsehileng o sebetsang oa Motor | -10 ℃ -85 ℃ |
| Mocheso o sebetsang oa motlakase | Safe Operation Temperature ea Motor | ≤ 120 ℃ |
| Mocheso oa mohala oa motlakase o phahame | Mocheso o phahameng oa moea | 180 ℃ |
| Molaoli o kenyang motlakase | PCBA input voltage | 120v kapa 240v lebitso la AC |
| Mosebetsi oa ho futhumatsa | Ho futhumatsa | YES e na le |

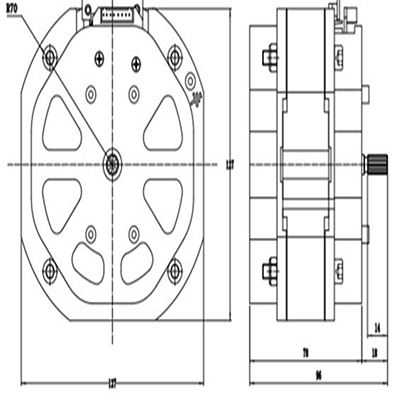

1. Boholo ba boholo ba motlakase
Tlhokomeliso: tataiso ea bophahamo e ka ba ho tloha ho 78mm ho ea ho 74m;sebopeho sa shaft ea motor mme se ka fetoloa ho latela litlhoko tsa bareki.
2. Tlhaloso ea motheo ea tsamaiso ea taolo ea PCAB

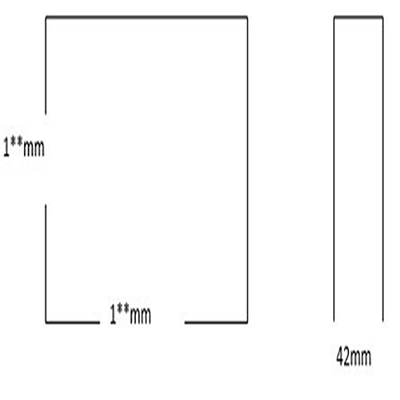

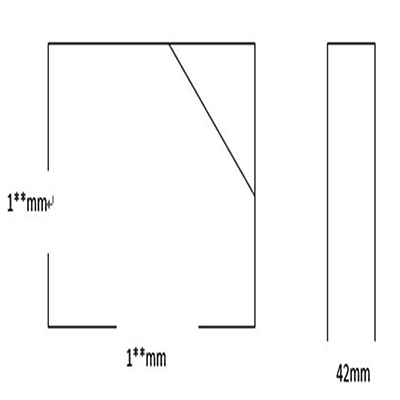

Mofuta oa A. Litekanyo tsa Outline:
Sebopeho le boholo bo ikhethileng bo hloka ho khethoa ho latela litlhoko tsa moralo oa bareki le lipuisano.
1) Mookameli o na le lisebelisoa tsa motlakase oa mos, licheso tsa mocheso, ho laola, ho khanna, li-capacitor le likarolo tse ling, 'me li ka kenyelletsa ho fetola likarolo tsa phepelo ea matla (karolo ena ka linako tse ling e le likarolong tse ling tsa mochine oa ho pheha).Ho kenyelletsa ts'ireletso ea mariki, ts'ireletso ea mocheso o feteletseng le litšireletso tse ling tsa bohlokoa.
2).Kakaretso ea ts'ebetso le maemo
| Khokahano ea CE Electromagnetic | Fetolela pele 'me u khutlisetse morao ka lebelo lefe kapa lefe nakong ea metsotsoana e 1-1.5 | Scientific stall algorithm | Brake anti-shake algorithm |
| Dual 85 degree standard | Theknoloji e khutsitseng, theknoloji ea ho sebetsana le litšitiso | Ho tšepahala ho phahameng, ho tsitsisa ho phahameng, bophelo bo bolelele | Litekanyetso tsa naha |
Tse peli: mofuta o tloaelehileng
Litlhaloso tsa mahareng tse ka rekisoang ka theko e tlase.
1. Ts'ebetso ea mantlha ke e latelang:
| Litekanyetso tsa motheo | Litekanyetso tsa motheo | boleng ba palo
|
| lebelo le tlase | Lebelo la Min | 40+ rpm |
| lebelo le phahameng | Lebelo le phahameng | 10500rpm |
| Sebaka sa torque | Sebaka sa torque | 2nm(min rpm)- 0.1nm(max rpm) |
| Matla a Phahameng | Matla a maholo | 450W |
| lerata le phahameng | Lerata ka lebelo le phahameng | ≤ 83db |
| Tsamaiso ea makoloi | Tataiso ea ho potoloha | Hanghang pele le ho kgutlela morao ka nako e kgutshwane haholo. |
| Sehlopha sa tšireletso ea insulation | Sehlopha sa tšireletso ea insulation ea Motor | H |
| Mocheso o sebetsang oa tikoloho | Mocheso o sireletsehileng o sebetsang oa Motor | -10 ℃ -85 ℃ |
| Mocheso o sebetsang oa motlakase | Safe Operation Temperature ea Motor | ≤ 120 ℃ |
| Mocheso oa mohala oa motlakase o phahame | Mocheso o phahameng oa moea | 180 ℃ |
| Molaoli o kenyang motlakase | PCBA input voltage | 120v kapa 240v lebitso la AC |
| ho futhumatsa | Ee/che | Ee |
2. Tlhaloso ea motheo ea tsamaiso ea taolo ea PCAB
Hlahisa boholo ba motheo:
Sebopeho le boholo bo khethehileng, ho buisanoa le ho etsoa qeto
Molaoli o na le lisebelisoa tsa motlakase oa mos, licheso tsa mocheso, taolo, koloi, li-capacitor le likarolo tse ling, 'me ka boikhethelo li ka kenyelletsa kapa li sa kenyelle ho fetola likarolo tsa phepelo ea matla.Ho kenyelletsa ts'ireletso ea mariki, ts'ireletso ea mocheso o feteletseng le litšireletso tse ling tsa bohlokoa tse boletsoeng ke bareki.Ha ho boikhethelo ba ho futhumatsa kapa ho futhumatsa.
B: Lihlahisoa tsa SRD bakeng sa lisebelisoa tse ling tsa lapeng tsa Ai Magnetic Technology
AICI e na le theknoloji e matla ea SRD le bokhoni ba R&D, bo ka fihlelang litlhoko tsa sehlahisoa sa hau ka nako e khuts'oane.
| tshebediso | lebelo rpm | lerata | potoloho ea ntshetsopele | Theknoloji le Lihlahisoa |
| Seqhoqho sa lebota sa lebelo le phahameng | Ha ho mojaro 45000;boima 30000 | Kopana le maemo a naha | 90 matsatsi | Theknoloji e felletseng, ho phethela sehlahisoa |
| se omisa letsoho | 45000-50000 | Kopana le maemo a naha | Matsatsi a 45 | Theknoloji e felletseng, ho phethela sehlahisoa |
| mochini o hlatsoang | Lebelo lefe kapa lefe le lakatsehang (ho kenyeletsoa ho khanna ka kotloloho le lebelo le phahameng) | Kopana le maemo a naha | 90 matsatsi | Theknoloji e feletseng |
| fan (fan), Compressor ea moea oa moea | Lebelo lefe kapa lefe le lakatsehang (ho kenyeletsoa ho khanna ka kotloloho le lebelo le phahameng) | Kopana le maemo a naha | 90 matsatsi | Theknoloji e feletseng, lihlahisoa tse ling li phethoa |
| sehlakola matlakala | Ho khanna ka kotloloho sebakeng leha e le sefe se hlokahalang sa lebelo | Kopana le maemo a naha | 90 matsatsi | Theknoloji e feletseng |
| Vacuum cleaner, se omisa moriri | 100,000 rpm + | Kopana le maemo a naha | 450 matsatsi | thekenoloji |
Xinda Electric Technology Co., Ltd. e etsa switched reluctance motor, hape ke k'hamphani e ka fanang ka lienjineri le lilaoli tse koetsoeng ka litokelo tse ikemetseng tsa thepa ea mahlale bakeng sa lisebelisoa tsa ntlo ka lihlopha.Rea u amohela ho sebelisana!
Selelekela sa sehlahisoa:
Ka mor'a lilemo tsa ho tsoela pele ho etsa lipatlisiso tsa tekheniki, Xinda e tseba ka ho feletseng theknoloji ea mantlha ea li-motors tsa ho tsilatsila tse fetotsoeng bakeng sa lisebelisoa tsa ntlo, 'me e thehile letoto la lihlahisoa tse nang le litokelo tse ikemetseng tsa thepa ea mahlale.Lihlahisoa tsa k'hamphani li 'nile tsa sebelisoa haholo lisebelisoa tsa ka tlung, tse kang mechine ea ho hlatsoa, li-blender, li-breaker tse lebelo le phahameng, li-vacuum cleaners, li-dryer tsa letsoho, li-air compressor joalo-joalo,' me li fihletse thepa e romelloang Europe le United States le linaheng tse ling. .
Likarolo tsa tekheniki tsa li-motors tsa SRM-CL/GD/JD:
E na le litšoaneleho tsa ho khanna ka ho toba ka bophara bo pharaletseng, ts'ebetso e phahameng, ts'ebetso e potlakileng, lerata le tlaase, nako e telele ea ts'ebetso e tsoelang pele, ho potoloha ho ea pele le ho khutlela morao le bophelo bo bolelele.Ho nka mohlala oa SRM-CL, sehlahisoa sena se na le mefuta e mengata ea ho khanna ka ho toba, litšoaneleho tse babatsehang tsa tlhahiso, lebelo le phahameng, ho nepahala ho phahameng, litaba tse phahameng tsa theknoloji le ts'ebetso e rarahaneng.
Likarolo tse felletseng tsa li-motors tsa SRM-CL/GD/JD:
Litekanyetso tsa mantlha tsa ts'ebetso
| Tlhaloso ea motlakase | Direct drive range | bokgoni ba lebelo le phahameng | taolo ya lerata |
| 110V 220V | 30-11000rpm 70-25000rpm | 100000rpm | Ho khutsa ≤ 79db Mofuta o tloaelehileng ≤ 84db
|
Li-motors tsa lebelo le phahameng, tse otlolohileng ka kotloloho bakeng sa mechini ea lijo e sebetsang ka bongata
Xinda ke khamphani ea pele Chaena e khonang ho hlahisa, ho hlahisa le ho rekisa likoloi tse joalo ka bongata.
Enjene ea 45,000-rpm e phahameng ka lebelo le phahameng e fetotsoeng ke Xinda Technology e ka sebetsa nako e telele ka mojaro oa 30,000 rpm.Ke enjene e lebelo le holimo e ka senyang marako.
